basic structure:

    The unit is mainly composed of cross arm collecting rack, reclaiming system, unloading system, secondary storage system, packing cart, wrapping machine and conveying track. The strip can be separated and packed with width of 30mm ~ 400mm, Stacking and flip and other operations.

One, cross arm

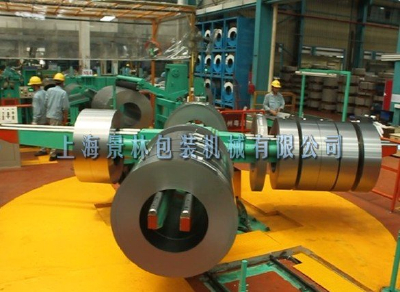

Cross arm

Second, automatic steel reclaimer

Automatic strip reclaimer

Third, the automatic packaging unit

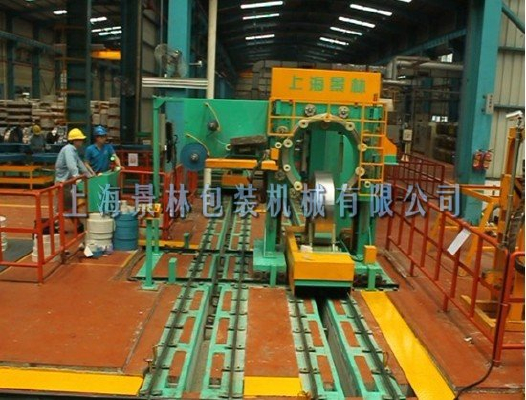

 Automatic strip reclaimer

Fourth, automatic stacking unit

Fully automatic stacking unit

Automatic packaging line principle features:

    The packaging line with a new design concept. In the course of moving from the material to the discharge, stacking, secondary storage and so on, the steel belt is always in a relatively static state, which fundamentally solved the impact and various problems caused by the steel belt moving in the traditional mode.

    The packaging line using a dual-track operation, improve work efficiency.

High degree of automation, high efficiency, to diameter 1100mm, width 50mm coil, for example, in accordance with a single roll of steel in the cross arm on a single parent volume on the order of completion from the material to the stacking about 35 minutes.

    The entire operating area has a safety barrier, people will enter the alarm, shutdown.
