Application

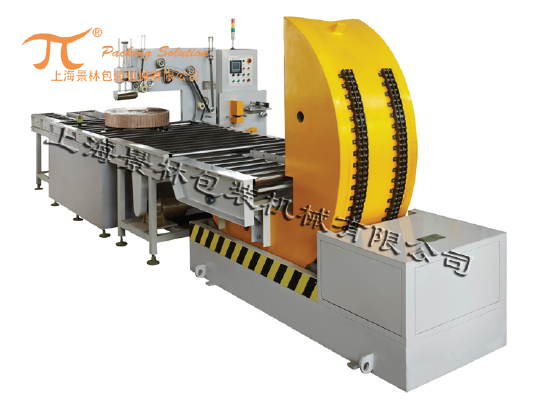

GW1200 Bearing wrapping machine is designed mainly for metallurgical industries. Our product CE ,ISO 9001 approved. The machine can be widely used in the exterior wrapping of cliled articles such as steel belt, bronze belt, wire material, rubber tube, bearing, electric wire cable etc.
Features
1. The components of well known brands are adopted in this vertical coil wrapper.
2. PLC and HMI systems could be adopted according to the user needs.
3. When trouble occurs, the indicator alarms automatically. And the trouble can be shown in Chinese.
4. Simple operation by imputing OD, ID and width of coiled metal. Other parameters will be set automatically and freely.
5. This vertical wrapping machine is designed with converter to adjust the overlap rate of wrapping tape according to the requirements.
6. Wrapping tape tension can be adjusted automatically.
7. Over rap rate can be adjusted by convertors
8. Special brake device to avoid material folding for the best packaging.
9. Machine can be connect with production line to get full automatic wrapping.
Technical Data
| ITEMS | GW1200 |
| Object height | ≤300mm |
| Object OD | ≤1200mm |
| Object ID | ≥500mm |
| Object weight | ≤2000kg |
| Wrapping tape | Fine compound paper tape |
| Ring speed | 30～40r/min |
| Working level height | 1200mm |
| Overlap rate | 30%~70% |
| Power output | About 2.0kw |
| Power supply | 380V, 3phase 5wires |
| Air source | 6～8kgf/cm2 |
