Type: Wrapping Machine, Wrapping Machine, General
Condition: Used
Year: 2010
Power: 3.8Kw
Place of Origin: Shanghai, China (Mainland)
Brand Name: JINGLIN
Model Number: JL2100-X
Automatic Grade: Automatic
Packaging Type: As per requirement
Packaging Material: Plastic
Usage: Outer
Driven Type: Mechanical
Packaging & Delivery
Packaging Details: soft packing or in standard wooden case Delivery Detail: 40days

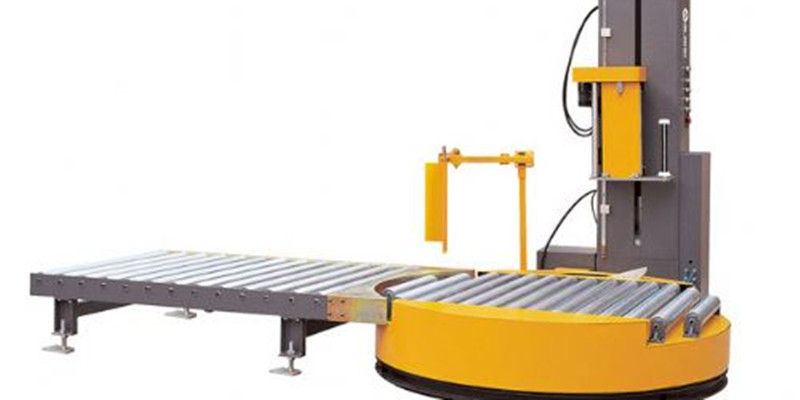

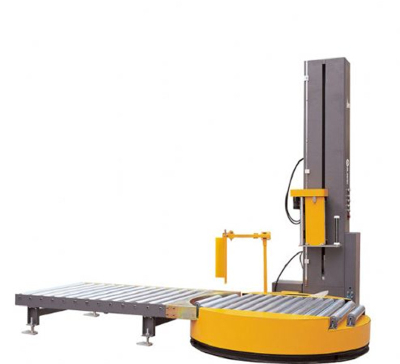

Automatic pallet wrapping/packing machine
rotary arm wrapper
rotary stretch wrapping machine
rotary arm wrapper ( rotary stretch wrapping machine )
The machine is used to pack goods on the stack with PE stretch wrapping film.
Features:
*PLC&HMI are adopted;
*Outstanding program design and skilled detail treatment;
*Unmanned working mode.All steps include extending load,feeding film,can be finished automatically;
*Indicator alarms automatically when trouble occurs;
*Separate control panel makes maintenance easily;
*Easy operation,firm&durable.
TECHNICAI DATA:
ITEMS | DATA |
Working mode | Unmanned |
Rotary arm power | 0.75kw |
Film carriage power | 0.18kw |
Conveying power | 0.75kw*3 |
Rotating speed | 10-13r/min |
Rotating diameter | 2000mm |
Film carriage speed | 3-4m/min |
Conveying speed | 8m/min |
Packing speed | About 20-30 Pallet/hour |
Overall dimensions | L3350mm W2200mm H3800mm (Front line, midline, back line, guardrail not included) |
Machine weight | 1000kg(Front line, midline, back line, guardrail not included) |
Turntable height | 500mm |
Max turntable loading | 2000kg |
Max packing size | L1300mm W1300mm H1800mm |
Film setting mode | Mechanical hand.. |
Film cutting mode | Mechanical hand.. |
Film smoothing mode | Mechanical hand.. |
Power voltage | 380V,three phase four wire |
Air pressure | 6-8kgf/cm2 |
